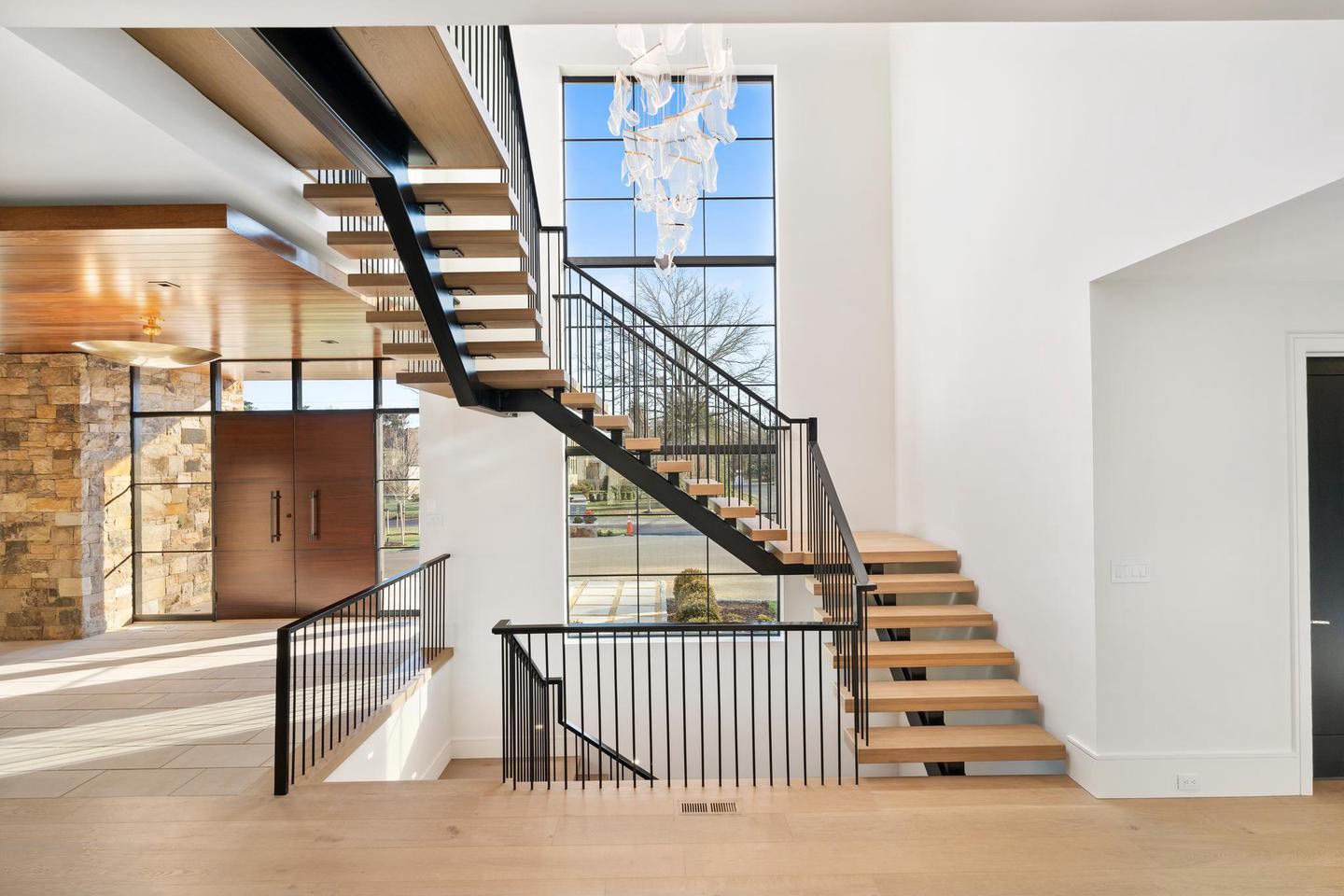

Newel Posts and the Handrail Termination Nobody Drafts

The Termination Is the Detail Nobody Draws

Stair drawings show the handrail and they show the newel, then go quiet about the 12 inches where the two actually meet. The plan gives a rail height, a baluster spacing and a newel location. The section gives a rail profile. What rarely appears anywhere in the set is whether the rail passes over the newel cap or dies into its face, whether the change in pitch is handled by an easing or a gooseneck, and what the rail does at the top of a curved flight when the helix flattens into a level landing return.

That silence is where curved stair packages stall. A bender can laminate a rail that follows the helix. A turner can produce a newel. Neither part is buildable until somebody decides, on paper, what the rail does when it arrives at the post.

Terminations drive everything upstream. They set the newel's internal construction, its finished height, its grain orientation, the position of its mortises and whether the blank needs a solid core at the cap. Those calls get made before any glue is spread, and reversing them later means a new blank.

ICD, the architectural millwork division of J. Gibson McIlvain, works the termination first and lets the rest of the stair parts follow from it. Newels, rail blanks, radius skirt stock and the trim that returns into the post are drawn together and milled together, which is the point of true custom work planned around a specific space rather than ordered from a catalog of stock parts. You can see how that sequence runs on the working process page.

What a Newel Post Actually Carries

A newel post is a structural element wearing a millwork finish, and the termination detail decides how the load gets into it. Model residential and commercial codes put a concentrated load of 200 lbf on handrails and guards, applied in any direction at any point along the top. On a stair, that load travels down the rail and into the newels. A post-to-post rail delivers it to the newel through a rail bolt in the post face. An over-the-post rail delivers it through the cap and the pin, which is a very different path through the wood.

The American Wood Council's codes and standards library and the International Code Council are the places to confirm what applies to a given occupancy, since guard and handrail provisions differ between a private residence and an assembly space. Accessibility requirements add another layer on commercial work, and the U.S. Access Board publishes the graspability and extension rules that govern rail terminations in public buildings.

Here is the part that gets lost. Anchorage is not millwork. The bolt pattern, the blocking in the floor system, the threaded rod running down through a stringer, all of that belongs to the installer and the structural drawings. J. Gibson McIlvain supplies and mills stair components and does not install them. What the shop can do is build the post so the anchorage the installer chose actually has somewhere to land, which means knowing about it in advance.

A hollow newel with a 2 inch wall cannot take a lag into its center. A newel meant to receive a rod needs a bored core and a solid cap block. That coordination happens at drawing review or it does not happen at all.

Solid, Laminated or Hollow

Three construction methods produce a newel post, and they behave differently enough that the choice belongs in the specification rather than in the shop's discretion. A single-piece solid blank is the traditional answer and still the right one for a turned newel of modest section. Above roughly 5 inches square, a one-piece blank in a hardwood starts working against itself as it equalizes, and checking on the show faces becomes a real risk.

Face-laminated blanks solve the movement problem by breaking the section into smaller pieces with alternating grain. The glue lines are visible under a clear finish unless the lamination is planned around the finished faces, so the layup has to be drawn, not improvised. On a stained Sapele or White Oak newel, a well-planned layup disappears into the figure. On a light species like Hard Maple, it rarely does.

Hollow box newels are built exactly the way ICD builds box beams, and the joinery choice carries the same consequences. Butt joints give the most minimal profile, the fastest turnaround and the easiest assembly, but they leave visible seams and visible end grain and they are the weakest option. Dado joints are strong and still straightforward to assemble, though seams and end grain still show. Lock miter joints show no visible seam at all and are the strongest of the three, which is why a clear-finished hollow newel almost always wants them.

Painted newels change the calculus. A seam that would be unacceptable under a clear finish disappears under primer and two coats, so a dado-jointed box newel is a reasonable call on a painted stair where a lock miter would be invisible work.

Over the Post and Post to Post at the Newel Face

The two rail systems make opposite demands on the newel, and a post built for one cannot be converted to the other on site. In an over-the-post system, the rail is continuous. It runs from the starting fitting to the upper landing without interruption, climbing over each intermediate newel through a cap. The newel itself stops short, its top machined to receive a pin or a dowel that engages the underside of the rail fitting.

Post-to-post is the other discipline. Each newel runs full height to its own cap, and the rail dies into the post face with a rail bolt, a mortise or a shouldered tenon. The rail is a series of discrete runs rather than one continuous member. This is the more forgiving system on a curved stair because each run is independently fitted, and it is the reason a lot of radius work gets detailed post to post even when the client asked for the look of a continuous rail.

What the shop needs from the drawing is short and specific. Pitch angle of each flight. Height at the newel top. Whether the newel is pin-top or full-height. Mortise depth and location on every face that receives a rail. The finished rail profile so the mortise can be cut to match its actual section rather than a nominal dimension.

Radius work adds one more requirement. On a curved flight the rail arrives at the newel on an angle that is neither square nor a standard miter, because the rail is simultaneously climbing and turning. The mortise has to be cut at a compound angle taken from the stair layout, and that angle comes from the stair builder's full-size layout rather than from the architectural section.

"We would rather see a full-size layout than a beautiful rendering. Give us the compound angle at the newel and the actual rail section, and the post arrives ready for the rail. Guess at it and somebody spends a day on a ladder with a rasp."

Norm Moton, Director of Sales, J. Gibson McIlvain

Where Radius Trim Returns Into the Post

The newel is also where the curved trimwork lands, and that intersection is drafted even less often than the rail termination. A curved stair carries a radius skirtboard against the stringer, a curved base at the landing, sometimes a radius wainscot cap, and all of those want to die cleanly into the starting newel or the landing newel. The post has to be sized to receive them.

A starting newel that looks correct in isolation can be a quarter inch too narrow to accept a 1 inch skirt on one face and a 3 quarter inch base on the return face without the two profiles fighting each other at the corner. That is a drawing problem, and it surfaces on site as a scribe that never looks right.

Radius trimwork is its own production question. Tight radii in solid stock get kerfed or laminated from thin laminations bent over a form and glued, and the lamination count comes from the radius and the species, not from a rule of thumb. Gentle radii in a stable species can sometimes be milled from solid curved blanks. ICD produces radius trimwork and radius millwork as custom work planned to a specific stair, along with the rafter tails, box beams, doors, cabinetry, pergolas, shutters, benches and railings that make up the rest of its custom scope.

Bending hardwood is glue work, and glue work sets the species list. A laminated rail or a bent skirt is only as good as the bond lines inside it, which is why the millwork palette matters more here than on almost any other component.

Species for Parts That Get Touched Every Day

A handrail and a newel cap are the two pieces of millwork in a building that every occupant puts a hand on, so hardness and glue behavior both matter. The millwork palette for this work is Sapele, Iroko, Afrormosia, Teak and Utile, with White Oak, Hard Maple and Cherry covering most domestic stair packages. Sapele runs roughly 1,410 lbf on the Janka scale, White Oak roughly 1,360 lbf, Hard Maple roughly 1,450 lbf and Cherry roughly 950 lbf. Genuine Mahogany at roughly 800 lbf is soft for a rail that takes daily traffic, which is worth knowing before a client falls in love with it.

Sapele and Utile machine predictably, take a mortise cleanly and glue without drama, which is what a laminated rail needs. Iroko and Teak bring real exterior durability. Afrormosia sits between the two and mills beautifully. Reference figures for any of these are easy to check against the Wood Database and the USDA Forest Products Laboratory, whose Wood Handbook remains the working reference for mechanical properties and shrinkage coefficients.

The tropical decking species are a different family and they do not belong in this conversation. Ipe, botanically Tabebuia spp, along with Cumaru, Garapa, Jatoba and Red Balau, are extremely hard and carry high oil content. That oil is exactly what makes them hard to glue, and a laminated rail or a face-glued newel blank is nothing but glue lines. A millwork shop reaches for Sapele, Iroko, Afrormosia, Teak or Utile instead, and saves the decking species for decking.

Cedar remains a legitimate default on exterior porch railing and it should never be dismissed as a lesser choice. Specify the grade, though. Clear vertical grain, CVG, is the stable, knot-free stock for a rail or a newel that will be clear-finished or painted. Select tight knot, STK, is a different and perfectly honest product with a different look and different movement behavior around the knots.

Where a CITES listed species is involved, documentation and chain of custody travel with the material. J. Gibson McIlvain is an FSC certified importer and miller, so the paperwork a specification with sourcing requirements demands moves with the order rather than being reconstructed after the fact. The CITES secretariat and FSC both publish the current listings and certification structures.

Moisture and Grain Orientation in a Large Blank

A newel post is the thickest single piece of wood in a stair package, and thickness is what makes moisture content non-negotiable. Interior millwork gets milled to an in-service moisture content near 6 to 8 percent. Exterior work sits near 12 to 16 percent. Those are not arbitrary numbers. They are the equilibrium ranges the wood will find in service, and a blank that arrives outside them will move toward them after it is installed, usually in the form of a check running down a show face.

Grain orientation does as much work as moisture. Quartersawn and rift stock moves considerably less across its width than plainsawn, which is why it gets specified anywhere a painted or panelized surface has to stay flat. On a newel, rift stock on the four show faces keeps the post from cupping or telegraphing a ray fleck pattern that the client never approved.

J. Gibson McIlvain holds over seven million board feet of exotic and domestic lumber at its Maryland yard, which is what makes it possible to pull matched rift stock for four faces of a newel out of a single lift instead of across three separate purchases. On a stair where the newel, the rail and the balusters all read together under a clear finish, that lot matching is the difference between a package that looks designed and one that looks assembled.

Building Science Corporation publishes the underlying physics of wood and water for anyone who wants the full explanation of why equalization matters more in a 5 inch section than in a 1 inch one.

Exterior Newels, Gate Posts and the Primer Question

An exterior newel is a gate post that happens to carry a handrail, and it fails in exactly the same ways. Water sits on the cap. End grain wicks at the base. The post is anchored to something that holds moisture against it. Every one of those failures is a detail question, not a species question.

Modified woods are a real answer for exterior stair and gate posts. Accoya runs roughly 1,600 lbf on the Janka scale and its acetylation gives dramatically reduced shrinkage and swelling, which is the property that matters most in a post exposed on four sides. Reference data on the process is published by Accoya. Thermory and Abodo Vulcan are both carried as well. All of these modified products top out around 16 ft, and most are sold on metric lengths just under 16 ft, because that is the size of the kiln. Plan the post height inside that limit.

One more limit worth knowing at the drawing stage. Thermally modified Ash is not available wider than 8 inches. If the detail calls for a wide face on a modified product, the answer is Accoya or Abodo Vulcan rather than modified Ash.

Warranties exist only on modified products. There is no warranty on solid unmodified wood and there cannot be, since it is an organic material responding to its environment. Anyone offering one is describing something other than lumber.

J. Gibson McIlvain primes wood in three levels, in both oil-based and water-based systems, and exterior primed trim carries a fungicide additive. Open-grained and oily species absorb a great deal of finish, so a primer coat evens out the eventual painted surface, and sanding or buffing after priming knocks back the grain raising while keeping moulded detail crisp. On a newel cap with a turned or moulded profile, that post-prime sanding step is what keeps the detail from going soft under paint.

For painted exterior work, Sapele is the better call than Genuine Mahogany. It holds paint better and comes in a wider range of sizes and longer lengths. Note that Sapele is not milled 1x8 for exterior use, since that width is too wide to stay stable. And cupping in exterior trim is driven by installation and back ventilation rather than by species, which is worth saying to any installer who wants to blame the wood.

Profiles, Knives and Matching a Stair That Already Exists

Most curved stair work is not new construction, and matching an existing rail profile is a knife problem before it is a bending problem. An addition to a 1920s house needs a rail that matches the original to the eye. A historic district may require like-for-like replacement in both profile and species. Neither is possible without a ground knife that reproduces the section.

J. Gibson McIlvain maintains a moulding profile library holding thousands of ground knives, with new knives custom ground every week. If a profile is not already in the library, it gets ground to match, whether the source is a difficult historical restoration or a contemporary section drawn by the architect. Bring a physical offcut where one exists, since a rubbing or a tracing loses exactly the quirks that make a match read as correct. ICD's trim profile page shows how profile work is handled on the custom side.

Seventh generation and family run since 1798, the company keeps knives and records on file, which matters on a phased project where phase two arrives 18 months after phase one. The rail on the second-floor run will match the first because the same knife cuts it. The National Park Service Technical Preservation Services briefs are the standard reference for what a historic district review will expect to see.

Grading and profile standards are worth citing in a specification too. The National Hardwood Lumber Association publishes the grading rules the material is bought against, the Wood Moulding and Millwork Producers Association maintains the standard profile numbering, and the Architectural Woodwork Institute sets the quality standards most commercial specifications reference by name.

What Ships and What the Installer Owns

The clean scope line on a curved stair runs between what gets machined in a shop and what gets fitted in the field, and the termination detail sits right on it. Newel blanks, machined caps, rail runs milled to profile, radius skirt stock, balusters and the trim that returns into the post are all shop work. Cutting the final easing to a stair that was framed a half inch out of level is field work.

J. Gibson McIlvain mills the components, primes them where the specification calls for it, and ships them. The company does not install, does not coordinate installation and does not field measure, so the dimensions that drive the mortises come from the stair builder's layout. That is not a limitation so much as a division of labor, and the packages that go smoothest are the ones where it was understood at the start.

Delivery is its own risk on stair parts. A laminated rail with a finished profile and a turned newel cap are both easy to damage in transit. J. Gibson McIlvain runs its own fleet of trucks and keeps a section of the mill dedicated to packaging, which is how a rail run arrives with its arrises intact rather than rubbed. The company ships nationwide, regularly to California.

The shop also stores finished millwork for inventory control, which matters more on stairs than on most packages. A stair is installed late. Delivering finished rail and newels to a site that is still drywalling is how a clear-finished Sapele post picks up a stain nobody can sand out.

How J. Gibson McIlvain Would Specify This

Specify the termination before you specify anything else, and the rest of the stair package falls out of it. Name the system, over the post or post to post, on every flight and every landing. Call the newel construction method rather than leaving it to the shop, since a hollow lock miter post and a solid turned post are different products with different anchorage requirements.

Give the shop the pitch angle and the compound arrival angle at each newel, taken from a full-size layout rather than scaled off a section. State the finished rail profile by drawing or by physical sample. Note mortise locations and depths per face. Identify which posts need a solid core or internal blocking for the anchorage the structural drawings assume.

On species, lead with Sapele, Utile, Iroko, Afrormosia or Teak for anything glued, laminated or bent, and specify White Oak, Hard Maple or Cherry where the interior palette calls for a domestic. Call rift or quartersawn on the newel show faces. Set moisture at 6 to 8 percent for interior and 12 to 16 percent for exterior. On painted exterior posts, specify Sapele over Genuine Mahogany, and if the detail wants a modified product, keep the post height inside 16 ft and use Accoya or Abodo Vulcan where a wide face is required.

Put priming level in the specification rather than assuming it. Three levels are available in oil-based and water-based systems, with the fungicide additive on exterior work, and the right level depends on how much finishing the painter is prepared to do on site.

ICD handles the custom side of this work, including gates, box beams, custom doors, cabinetry, radius trimwork, pergolas, shutters, benches and railings, and the detail is worth reviewing at icdwoodwork.com. Linear trimwork, finished cladding and primed trim come from the J. Gibson McIlvain millwork service at the lumber yard, and both come off the same order, which is the practical reason a stair package and the trim around it can be scheduled as one delivery.

To get a curved stair package drawn and scheduled, send the stair layout and the rail section to J. Gibson McIlvain or call 800-638-9100. Bring the termination detail, even as a sketch. It is the fastest conversation in the building.

Frequently Asked Questions

Does the handrail on a curved stair have to be one continuous piece?

No. An over-the-post system produces the look of one continuous rail, with the rail climbing over each newel through a cap, but a post-to-post layout breaks the rail into discrete runs that die into the newel faces. Post-to-post is more forgiving on a radius stair because each run is fitted independently, which is why a lot of curved work gets detailed that way even when the client asked for a continuous look. The decision belongs on the drawing, since a pin-top newel built for an over-the-post rail cannot be converted to a full-height post-to-post newel in the field.

What does the shop actually need to cut the mortise at the right angle on a curved flight?

The compound arrival angle, taken from the stair builder's full-size layout. On a curved stair the rail is climbing and turning at the same time, so the angle where it meets the newel is neither square nor a standard miter and cannot be scaled reliably off an architectural section. Send the pitch angle of the flight, the finished height at the newel top, the actual rail section, and mortise depth and location for every face that receives a rail.

Can a hollow box newel be used as the starting newel on a curved stair?

Yes, provided the anchorage is designed into it. A hollow post built with lock miter joints shows no seam and no end grain and is the strongest of the box options, but it cannot take a lag or a rod into empty space. It needs internal blocking or a solid cap block located where the installer's fastener or threaded rod will land, and that location has to be known before the post is closed up.

Why not use Ipe or Cumaru for a bent handrail if they are harder?

Hardness is not the limiting property here, glue line quality is. Ipe, botanically Tabebuia spp, along with Cumaru, Garapa, Jatoba and Red Balau, carries high oil content that makes reliable bonding difficult, and a laminated rail or a face-glued newel blank is built entirely out of bond lines. A millwork shop reaches for Sapele, Iroko, Afrormosia, Teak or Utile on glued, bent or machined components and leaves the tropical decking species for decking.

Can an existing handrail profile be matched for an addition or a historic district replacement?

Yes. J. Gibson McIlvain keeps a moulding profile library holding thousands of ground knives and grinds new knives every week, so a profile that is not already on file gets ground to match. Send a physical offcut where one exists rather than a rubbing, since a tracing loses the small irregularities that make a match read as correct to the eye. The same knife stays on file for later phases of the same project.

How long can an exterior newel or gate post be if a modified wood is specified?

Plan on around 16 ft as the ceiling, and note that most modified stock is sold on metric lengths just under 16 ft because of kiln size. That applies to Accoya, Thermory and Abodo Vulcan alike. If the detail also calls for a wide face, use Accoya or Abodo Vulcan, since thermally modified Ash is not available wider than 8 inches.

Does J. Gibson McIlvain install the stair parts or take field measurements?

No. The company supplies and mills. Newel blanks, machined caps, rail milled to profile, radius skirt stock and the trim that returns into the post are shop work, while anchorage, final easing cuts and fitting to a frame that is slightly out of level are the installer's. Dimensions that drive the mortises come from the stair builder's layout, and the parts ship on the company's own trucks, packaged in a dedicated section of the mill, nationwide.
